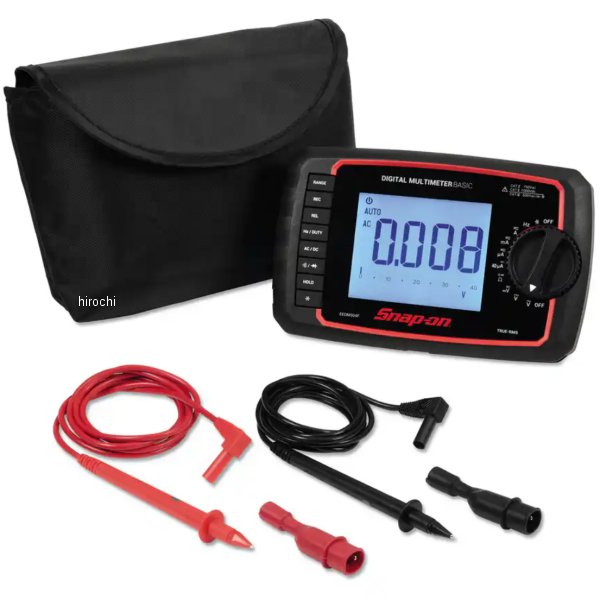

ベーシック デジタル マルチメーター

ベーシック デジタル マルチメーター
【仕様】
Capacitance:Yes
RPM:EEDMRPMG (opt.)
Low Pass Filter (LPF):No
Adjustable Trigger Level:No
Temperature:EEDM506C (opt.)
AC Volts:750
Micro Amps:Yes
Country Of Origin:KOR
Dimensions, inches:7-3/4 x 3-3/4 x 1-1/2
Noise Reduction Circuit:No
mS Pulse Width:No
CAT Rating:CATII 750 V AC, CATII 1,000 V DC, CATIII 600 V AC/DC
Backlight:Yes
Auto Shutoff:After Approx. 15 minutes (can be disabled)
Test Leads:EEDMLEADSET
Certificate of Calibration Model:EEDM504FCRTâ€
DC Amps:10
UL Listed:cULus 61010-1
Glitch Capture:No
Insulation Test:No
Analog Bar Graph:Yes
Resistance, ohms:40M
Basic DC Accuracy:—
Data Hold:Yes
Auto Range:Yes
Duty/Dwell:Yes
True RMS (Root Mean Square):Yes
AC Amps:10
Display Count:4,000
Soft Pouch:EEDM5F-POUCH
Fuses:EEDMFUSE-1, EEDMFUSE-2
Blown Fuse Identifier:Yes
Comp. Output (USB):No
Min/Max:Yes
DC Volts:1,000
Easy Open Battery and Fuse Door:Yes
Color Screen:No
Frequency:Yes
