イメージャ デュアル ビュー 5.5 mm 直径 36"

イメージャ デュアル ビュー 5.5 mm 直径 36"です。
Operating Temperature Range 32 °-113 °F (0 °-45 °C)

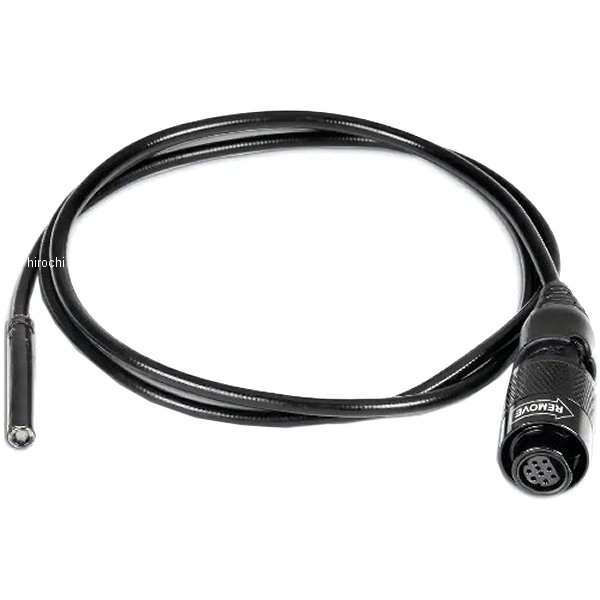

Dual View Imager 5.5 mm Diameter 36"
Maximum Light Output Forward View Imager: 300 Lux; Side View Imager: 2 400 Lux at 1" (open air dissipation)
Optimal Focal Range Forward View
Imager: 1"-12" (2.5 cm-30 cm); Side View Imager: 1"-12" (2.5-30 cm)
Humidity 5%-100%
non-condensing
Storage Temperature -4 °-158 °F (-20 °-70 °C)
Water Resistance Imager to a depth of 10' (3 m)

Weight lb (kg) 0.5 (0.227)
Maximum Bend Radius 3/4" (19.05 mm)
Length inches (mm) 36 (914.4)
Description (Chart) 36" Dual View Imager (5.5 mm head)
Width inches (mm) .2165 (5.5)
Power Supply Forward View Imager: 100 mA; Side View Imager: 100 mA
Lighting Forward View
Imager: 4 mini-LEDs with custom ring light pipe; Side View Imager: single LED with custom light pipe
